What is a Firewall and How Does it Work?

If you have walls that rise like a castle, enemies cannot approach the castle; so a firewall is like the castle wall of a network.

It was once reported that a company neglected its network security and suffered a costly data breach – a striking anecdote that illustrates the importance of firewalls.

Firewall Basics: What Does a Firewall Mean?

Firewall is one of the most fundamental elements of information security. It acts as a protection barrier between your network and external threats; it provides protection from malicious traffic and attacks that can infiltrate the system by preventing unauthorized access. In short, the firewall, as the first line of defense, is critical to maintaining a secure network ecosystem.

By design, it works by only allowing data that conforms to certain traffic rules to enter or exit your network. This means that the firewall monitors and filters both incoming and outgoing data, thus preventing potential threats and protecting sensitive data.

Firewall Types: Structural Distinctions

Firewalls offer diversity as well as necessity for network security. Basically, these firewalls are divided into two types: hardware and software-based. While both serve specific use cases, they offer different advantages and limitations.

Hardware-based firewalls are physical devices, usually placed at the entry point of the network. They have the capacity to inspect data packets and block unauthorized access attempts before they begin. Software-based firewalls, on the other hand, operate at the operating system level and can set customized rules for each computer.

Firewalls protect internal network integrity by creating isolation between devices.

In corporate network structures, these two types of firewalls are usually used together, thus building a multi-layered defense mechanism against external attacks. While the hardware-based firewall acts as a large-scale traffic filter, the software-based firewall applies detailed security policies on a user-by-user basis and offers finer tunning at different layers of the network.

Protection Methods: Firewall Technology

Firewall is a critical technology for securing computer networks; basically, it creates a line of defense against external threats. By continuously inspecting network traffic, it blocks unsafe or suspicious traffic, thus ensuring information security.

This defense system has two basic operating principles: inbound and outbound packet filtering. By controlling traffic from both directions, it forms the basis of network security.

Firewalls act according to established security rules, which define (based on information such as the source and destination IP addresses of packets) which traffic is allowed and which traffic should be blocked.

In the decision-making process, firewalls analyze traffic using advanced algorithms and databases. This analysis decides whether to release or block traffic in accordance with the security policy.

Firewall technologies have evolved over time to provide effective protection against ever-evolving cyber threats. This evolution includes the integration of both highly customizable rules and simultaneously AI-based threat detection systems.

As a result, firewalls integrated into a network structure play a vital role in protecting data security and increasing resistance to cyber attacks. These systems make the necessary arrangements to make the network resistant to both external and internal threats.

Firewall Working Mechanism: Data Filtering

The main function of a firewall is to filter network traffic. Designed in accordance with established security protocols, firewall systems examine transmitted data in packets. In the data filtering process, each data packet is evaluated according to a predefined set of rules. This evaluation is done on a wide range of criteria, including source and destination IP addresses, protocol type, port numbers and packet content. Packets that do not conform to the applicable rules are automatically blocked by the firewall, while those that do can freely join traffic to the network. This process plays a central role in improving the security of the network by regulating both inbound and outbound traffic.

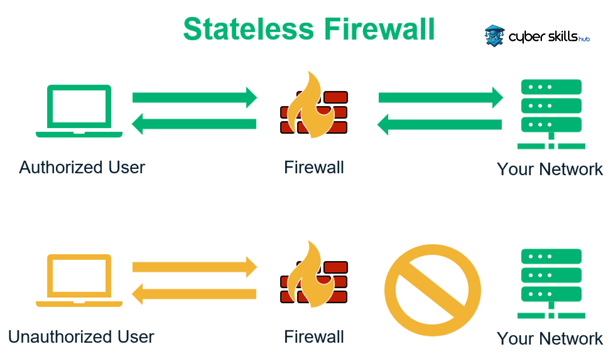

Packet Filtering Control of Data Packets

The firewall’s ability to filter packets is critical to network security. This filtering process ensures that data packets undergo a detailed inspection. During the inspection, all incoming and outgoing data packets are subjected to established security rules. The packet filtering mechanism maintains security by controlling access to the network.

Packet filters treat each data packet individually as a reflection of the network’s security policies. The packet’s characteristics, such as source and destination, port number and protocol, are evaluated according to the security rules. If a packet does not meet the security criteria, it is rejected by the firewall, thus preventing malicious traffic from infiltrating the network.

This evaluation process takes place through detailed analysis of the information in packet headers. This process, also called dynamic packet filtering, acts as a vital dam to prevent malware or attackers from infiltrating the network. Dynamic packet filtering, unlike static filtering, can adapt to constantly changing network traffic conditions and increases the effectiveness of the firewall.

In some cases, packet filters are enhanced with stateful inspection. Stateful filters make decisions based on the current connection state of a data packet in the network. This approach makes the filtering process more dynamic and intelligent. The history of data packets and the state of the link are used as a reflection to improve network security.

In conclusion, packet filtering is one of the cornerstones of the firewall infrastructure. The rules that filters rigorously enforce play an important role in protecting the network against malicious traffic. Dynamic and stateful packet filtering techniques are evolutionary steps in improving network security.

Status Monitoring Monitoring Connections

Stateful inspection is a dynamic monitoring method that is critical for network security. In this process, data packets are carefully checked at each stage according to the state of a connection.

1. Connection Establishment: When a device sends a request to access the external network, state control analyzes the request and decides whether to establish a connection.
2. Packet Inspection: Data packets from accepted connections are evaluated in the historical context of the connection and each packet is examined for its relevance to the connection state.
3. Link Update: After each passing data packet, the current state of the link is updated and this information is used as a reference point for checking subsequent packets.
4. Session Termination: When a connection becomes redundant or insecure, stateful inspection terminates the session and blocks potential threats.
   Stateful inspection is one of the most effective and intelligent implementations of network security strategies and is indispensable for modern firewalls.

With a stateful inspection mechanism, firewalls can take more robust security measures with a holistic view of each data flow. This monitoring process strengthens the ability to instantly detect potential threats and react effectively.

Firewall Setup: First Steps

Before proceeding with firewall installation, it is essential to conduct a detailed analysis of your network topology. This allows you to determine where to place the firewall and is critical for effective protection.

During installation, the firewall unit must be correctly positioned and have an up-to-date operating system. This is the basis for creating a proactive protection against threats through a robust and updated software infrastructure.

Finally, a secure communication channel needs to be established between network devices and the firewall. This communication is key to securely managing the flow of data between devices.

Network Topology and Firewall Placement

Network topology plays a critical role in determining firewall placement. It is essential to consider the structural characteristics of the network and the flow of traffic for optimal placement.

1. External Network Border: The firewall is usually positioned at the external network boundary, i.e. at the point closest to the internet connection.
2. Internal Network Boundary: Firewalls can also be tasked with separating internal network segments for the protection of corporate networks.
3. Special Enforcement Zones: Special security zones such as DMZ (Demilitarized Zone) are created and additional devices are placed at these points.
4. Multi-Layered Defense: An architecture with different firewall devices at physical or logical layers may be preferred.
5. Access Control Lists (ACL): Access controls and permissions are organized and managed according to these positionings.
   The security policies and rules set for each layer clarify which parts of the network are to be protected.

Identifying the vulnerability points of the network during installation and paying special attention to these areas is the beginning of creating a secure architecture for the entire system.

Basic Settings: Parameters Required for Setup

First of all, each firewall needs a configuration specific to the network structure it is connected to. This configuration forms the cornerstone of network security and determines how the device will behave.

First, basic network parameters such as IP addresses, network masking information and default gateways need to be configured to enable the firewall system to be installed. In addition, the configuration file that will determine the security policies and rules must also be created with great care. In this file, the types of traffic to be allowed to services and ports, the addresses of internal network resources to be protected and the networks that can access these resources should be carefully determined by the administrator.

In the next step, the security level of the firewall is determined. This is done with policy tables that determine which types of connections will be accepted or rejected and which permissions will be applied. In creating these policy tables, attention to the needs of the network and potential threats is critical to prevent network vulnerabilities.

Finally, once all these settings have been applied, a testing process should be carried out to verify the correctness and effectiveness of the configuration. The rules defined in the firewall should be seen to work in real-world scenarios and perform as expected. Any problems that may arise during this process should be quickly identified and corrected, which will ensure that the system is robust.

Firewall Management and Maintenance

For the firewall to work effectively, it is important to update and check it periodically. This ensures that your firewall remains resilient to current threats as the cyber threat landscape is constantly evolving. A well-planned management and maintenance strategy requires taking action against new vulnerabilities and configuration errors, as well as reviewing existing security policies and rulesets.

It should be noted that firewalls should be regularly updated on a software and hardware basis. These updates include security patches and performance optimizations to ensure that your firewall can adapt to potentially changing network configurations and usage scenarios.

Update Processes: Keeping the Firewall Updated

Keeping firewalls up to date is one of the cornerstones of keeping up with the ever-changing cyber threat landscape. These processes include both software and hardware updates and should be managed regularly by system administrators.

• Periodic control and implementation of operating system and firmware updates of the firewall
• Continuous updating of virus definitions and signature-based detection systems
• Reviewing security policies and rules and reorganizing them when necessary
• Updating intrusion prevention systems (IPS) and other security layers
• Auditing configuration changes for compliance with security standards

Initial adjustments after installation are not enough; continuous updating and reconfiguration of the firewall is critical. As threats are dynamic in nature, these updates should be considered as part of the security strategy.

Firewall updates allow potential vulnerabilities to be closed proactively and defense mechanisms to be strengthened against constantly evolving threats. Therefore, firewall maintenance and management processes are pillars of system security.

Log Records Monitoring and Analysis of Events

It is critical for firewalls to keep detailed information about traffic within the network in the form of logs, which are used both to investigate past incidents and to improve security strategies. These logs are used both to analyze past events and to improve security strategies.

Network traffic analysis is a vital process to detect potential threats early on. This analysis allows danger signals to be recognized.

Log records contain data such as successful and failed login attempts, rule violations and access blocking incidents. Analyzing this data enables security breaches to be detected in advance and necessary actions to be taken in a timely manner.

Logging plays a key role in analyzing various firewall events and understanding adversary scenarios. By integrating with advanced analysis tools, more in-depth analysis can be performed and a broader perspective on security incidents can be gained.

Advanced security systems can use artificial intelligence and machine learning techniques for automated analysis of log records and identification of unusual activity. These methods are suitable for extracting important information from high volumes of data and presenting it to security experts.

As a result, regular review and analysis of daily logs enables a proactive approach to network security strategy. This process strengthens the security posture and is a cornerstone of threat hunting activities.

If you want to learn more about firewall and network security, you can check out our cyber security courses at Cyber Skills Hub. These courses focus on developing practical skills as well as theoretical knowledge. They are ideal for those who want to gain in-depth knowledge on topics such as network security, cyber threats and protection methods. Explore our courses to specialize in cybersecurity and improve your skills.
